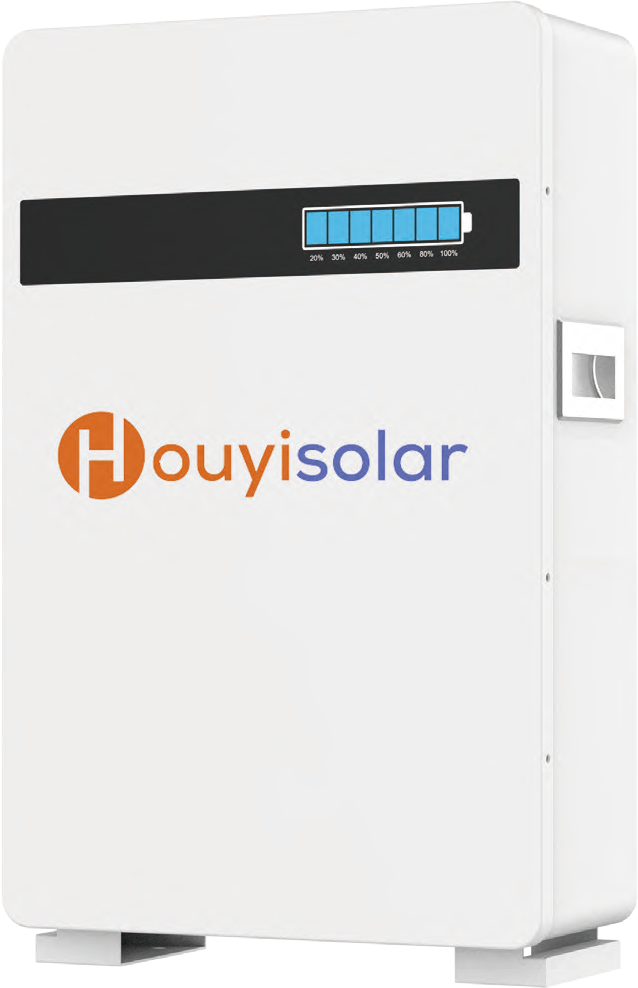

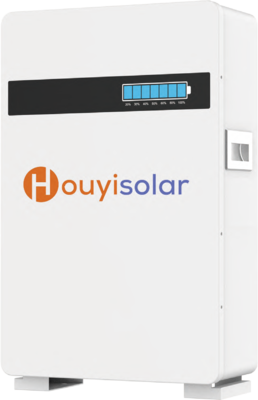

Lifepo4 lithium battery

Lifepo4 lithium battery

Inquiry
Specifications
PERFORMANCE   SPECIFICATIONS
Model           DW-5KW-ESS   DW-10KW-ESSDW-15KW-ESS
Nominal   Voltage   51.2V51.2V51.2V
Cell   model/Configuration3.2V100Ah(GanFeng)/16S1P3.2V200Ah(GanFeng)/16S1P3.2V280Ah(EVE)/16S1P
Capacity(Ah)100AH200AH280AH
Rated   Energy(KWH)5.12KWH10.24KWH14.34KWH
Max.   Charge/Discharge Current(A)100A /100A100A /100A100A /100A
Voltage   Range(Vdc)47.2-56.8V47.2-56.8V47.2-56.8V
ScalabilityUp to 6 parallelUp to 6 parallelUp to 6 parallel
MECHANICAL   SPECIFICATIONS
Weight(Approx)(KG)65g102kg135kg
Dimension   (W/D/H)(mm)645*385*160715*415*250890*550*460
Installation   ModeWall Mounnted
IP GradeIP21

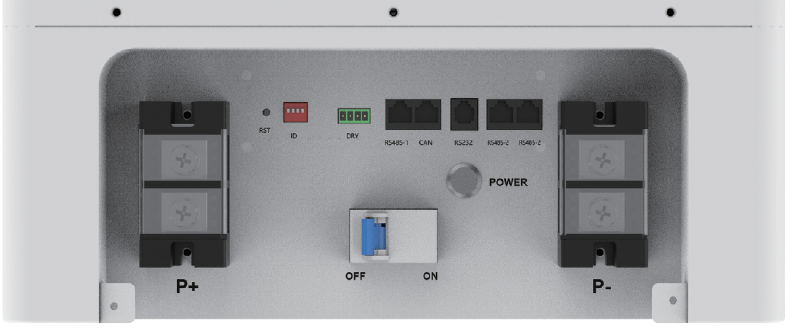

CommunicationRS232-PC,RS485(B)-BAT   RS485(A)-Inverter,Canbus-Inverter
Cycle Life≥6000cycles@25℃，60%EOL
SECURITY   AND CERTIFICATION
Safety(Pack)UN38.3,MSDS,IEC62619(CB),CE-EMC,UL1973
Safety(Cell)UN38.3,MSDS,IEC62619(CB),CE-EMC,UL1973
ProtectionBMS, Breaker
ENVIRONMENTAL SPECIFICATIONS
Operating   Temperature(℃）Charge:-10℃~50℃；Discharge：-20℃-50℃
The FAQ of renewable hybrid inverter
How many pieces solar panel match the inverter ? It depends on the voltage of total solar panel , which need meet the inverter MPPT voltage to make best efficiency of solar panel . How to choose the solar battery ?
Recommend that use the houyisolar . The battery need match the inverter voltage input. How can we place order ?
Feel free to contact our sales team , we will answer you soonest and recommend best quotation for you.
